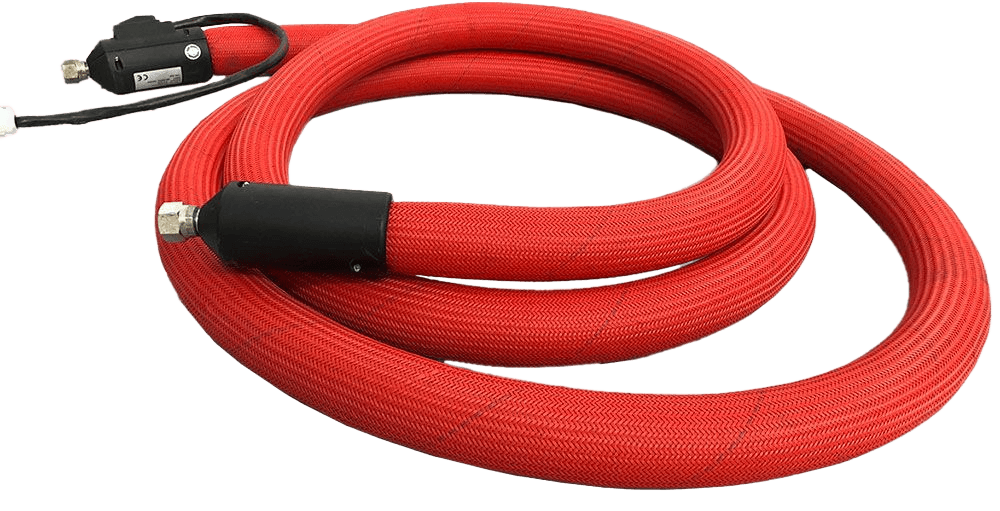

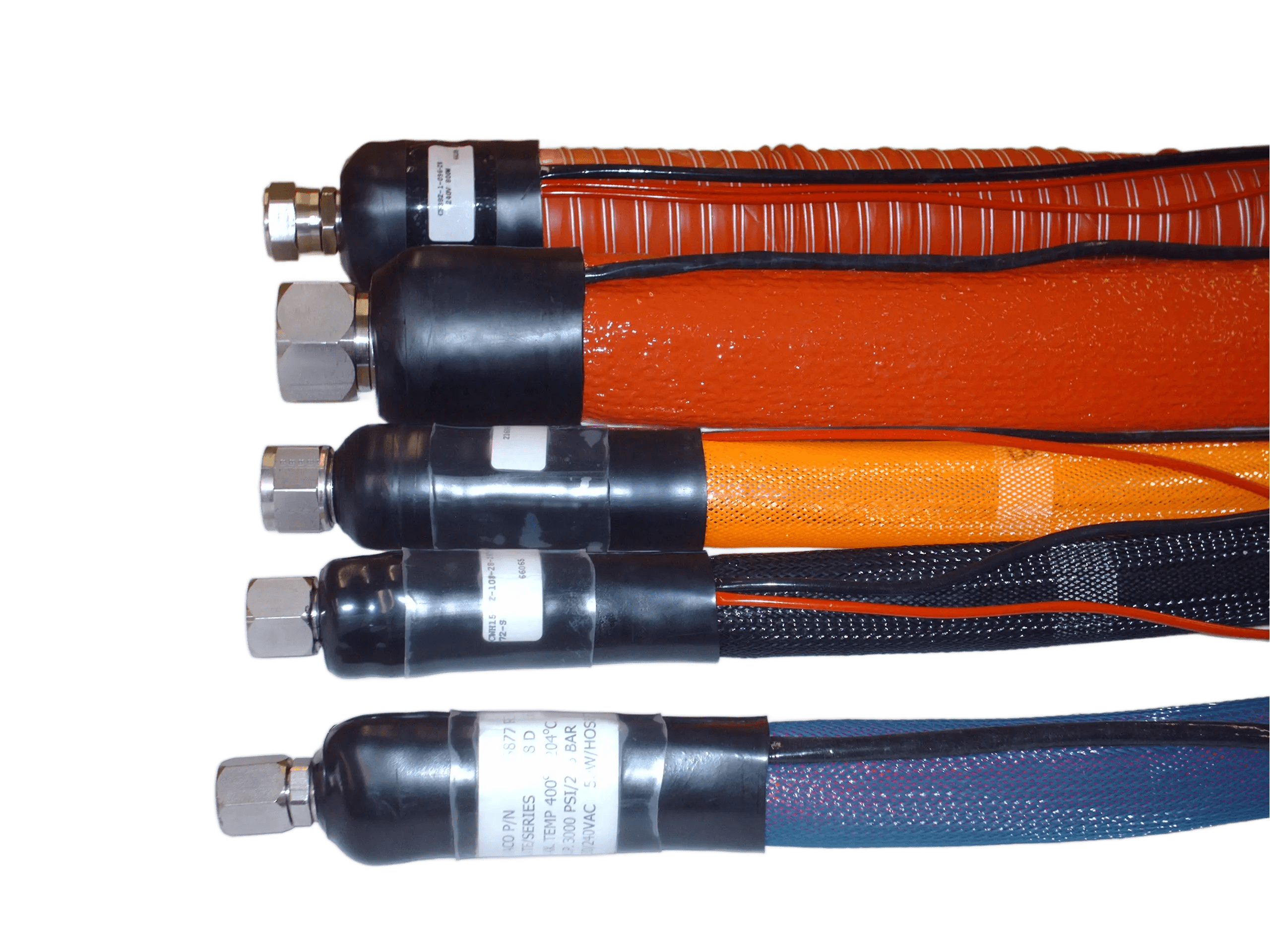

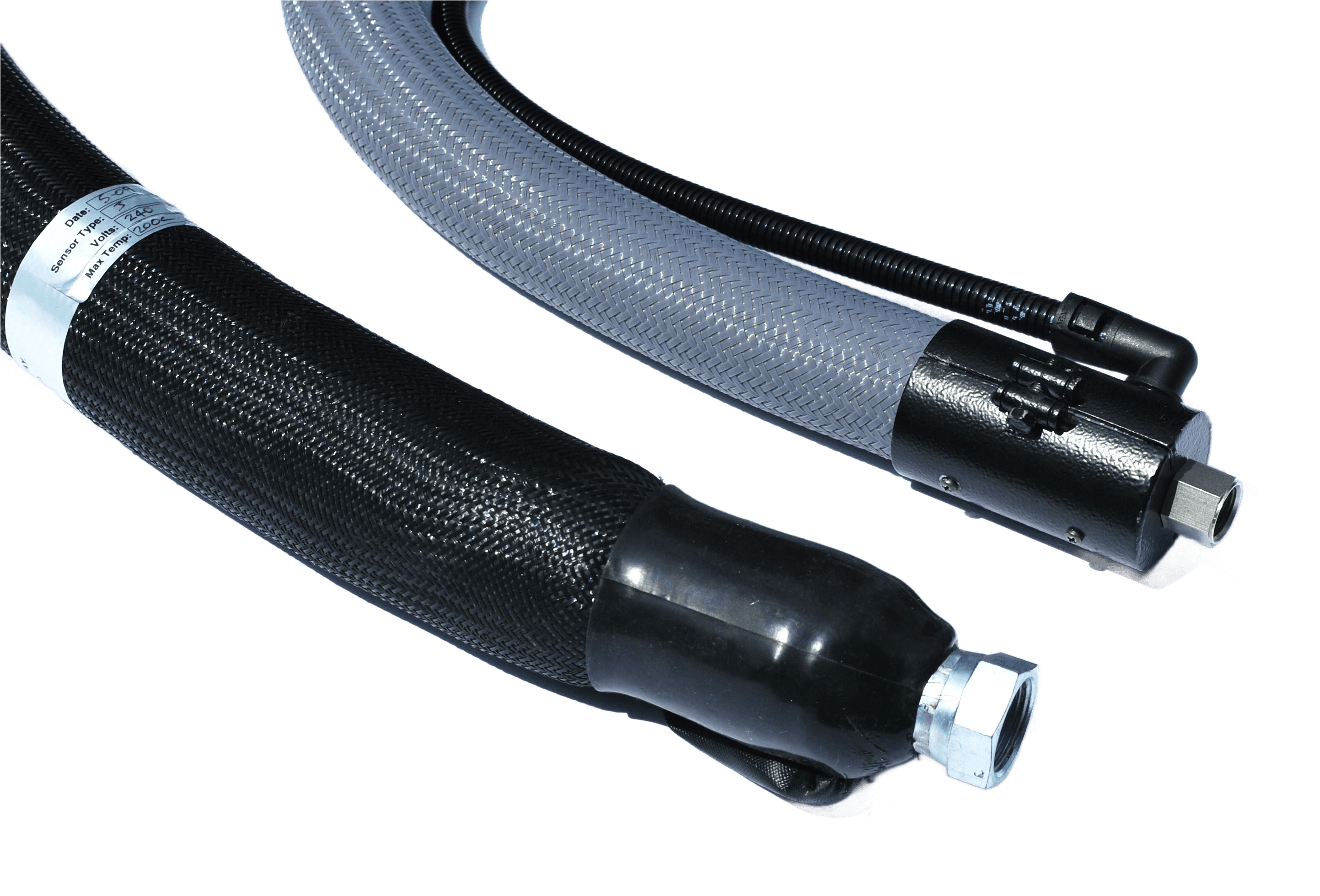

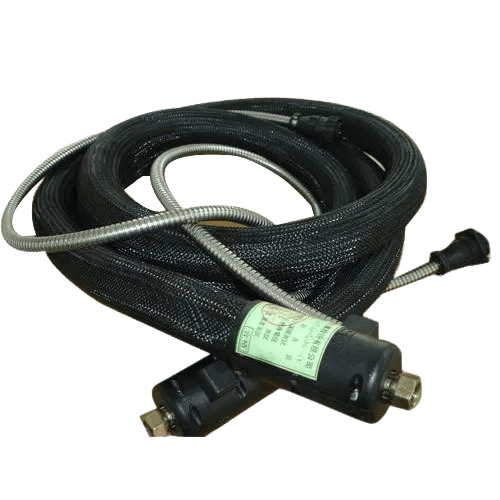

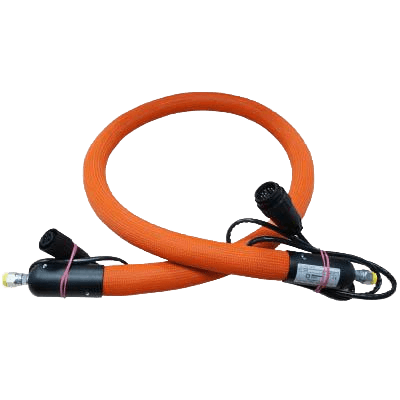

1 / 6Hose Pipe Heater
Hose Pipe Heaters represent cutting-edge thermal management technology featuring pre-heated, pre-insulated flexible hose assemblies engineered for demanding industrial process applications requiring temperature maintenance during fluid transfer. These sophisticated heating solutions incorporate high-performance PTFE or stainless steel inner cores integrated with advanced self-regulating or constant-wattage heating elements for precise temperature control.
Precise temperature control up to 200°C continuous
Available in continuous lengths up to 300 meters
Certified for hazardous area and explosive environment use
- Cable-like installation simplicity reducing labor and installation costs
- Available in continuous lengths up to 300 meters eliminating joints
- Compact footprint design minimizing space requirements and fittings
- Maintenance-free operation with superior abrasion and chemical resistance
- See all 14 features
Product Description
Key Features
- Cable-like installation simplicity reducing labor and installation costs
- Available in continuous lengths up to 300 meters eliminating joints
- Compact footprint design minimizing space requirements and fittings
- Maintenance-free operation with superior abrasion and chemical resistance
- Comprehensive hazardous area certifications for explosive environments
- Advanced thermal insulation ensuring energy efficiency and safety
- Flexible design accommodating complex routing and dynamic applications
- Custom end fittings and connection hardware for seamless integration
- Integrated temperature control and monitoring capabilities
- Superior chemical compatibility across diverse process fluids
- Rugged construction suitable for demanding industrial environments
- Professional technical support and application engineering services
- Rapid delivery and comprehensive after-sales service support
- International certifications and global availability
Construction
- 01
High-Performance Inner Tube
Chemical-resistant PTFE or precision stainless steel tubing engineered for superior chemical compatibility, pressure ratings, and thermal stability.
- 02
Integrated Heating Core System
Advanced self-regulating or constant-wattage heating elements permanently bonded to inner tube providing uniform temperature distribution and precise thermal control.
- 03
Advanced Thermal Insulation
High-performance fiberglass and ceramic-cloth insulation system engineered for minimal heat loss, superior thermal efficiency, and extended operational life.
- 04
Protective Armor System
Heavy-duty carbon steel or stainless steel braided protection providing exceptional abrasion resistance, mechanical protection, and environmental durability.
- 05
Precision End Fitting Assembly
Professional PTFE or stainless steel end fittings with integrated strain reliefs, sealing systems, and connection hardware for leak-tight installation.
Specifications
- Maximum Operating Temperature
- Up to 200°C (392°F) continuous operation
- Maximum Length Options
- Up to 300 meters continuous length
- Inner Tube Materials
- PTFE, Stainless Steel 316L, Food-Grade Polymers
- Heating Element Types
- Self-regulating, Constant wattage, Zone heating
- Insulation Systems
- High-grade fiberglass, ceramic cloth, silicone foam
- Protective Armor
- Stainless steel braid, carbon steel mesh, polymer jacket
- Voltage Options
- 110V to 480V AC, single and three-phase
- Power Range
- 100W to 5000W+ (length and application dependent)
- Pressure Rating
- Up to 40 bar (application and construction dependent)
- Bend Radius
- Minimum 6x outer diameter (flexible installation)
- Environmental Protection
- Weatherproof, chemical resistant, abrasion resistant
- Hazardous Area Certifications
- ATEX, PESO, IECEx (Zone 1 and Zone 2 approved)
- End Fitting Options
- NPT/BSP, Flanged, Cam-lock, Tri-clover, Custom
- Control Integration
- Thermostat, RTD, thermocouple, digital control compatible
Applications
- Chemical and petrochemical sample and process transfer lines
- Steam and condensate return systems with temperature maintenance
- Analytical instrument and sample-extraction heated hoses
- Fluid and gas transfer in explosive and hazardous environments
- Viscous material handling including adhesives and hot melts
- Food and beverage processing heated transfer systems
- Pharmaceutical and biotech process fluid heating
- Mobile and portable heating equipment connections
- Laboratory and pilot plant heated sample lines
- Industrial process equipment heated connections
- Freeze protection systems for outdoor installations
- Hot oil and thermal fluid circulation systems
- Paint and coating heated transfer applications
- Plastic processing and material handling systems
